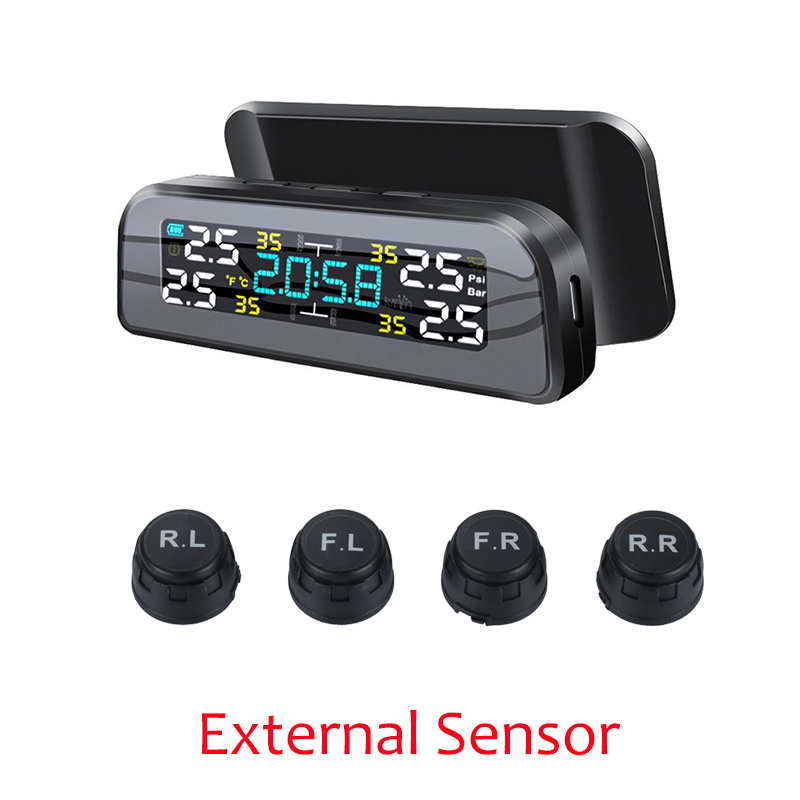

Universal TPMS Wireless Tire Pressure Monitoring System Solar Power Clock LCD Display 4 External Sensor Tire Pressure Sensors
7/8

Universal TPMS Wireless Tire Pressure Monitoring System Solar Power Clock LCD Display 4 External Sensor Tire Pressure Sensors

$18.14
$32.98
-45%
Type:  External Sensor
Quantity
Sku : TPMS01-WAI
Weight : 0.3kg

Description


[SOLAR POWER & USB CHARGING]:

2 charging ways which ensure the tire pressure monitoring system will work continuously, and do not occupy the car cigarette lighter socket.
[6 ALARM MODES]:
fast leak alarm, slow leak alarm, high pressure alarm, high temperature alarm, sensor fault alarm and sensor battery low power alarm, ensure safe driving. [ Press any button will stop alarming ]
[DIGITAL LCD SCREEN]:
the monitor displays real-time pressure & temperature, it can be placed anywhere stably and you can easily read the data.
[EASY TO USE]:
4 wireless external sensors, easy installation and receive real-time signal. The pressure and temperature data can be switched (default 0.5- 3.5 Bar), with pressure unit: PSI/Bar and temperature unit: C/F selectable.


TPMS receiver:

-Battery: Built-in 400mAh lithium ion battery

-Working voltage: DC 5V

-RF transmission frequency: 433.92MHz

-Pressure unit: psi / bar

-Temperature unit: Deg.C / Deg.F.

-Working temperature: minus 20 plus 85 degrees Celsius

-Storage temperature: minus 40-plus 125 degrees Celsius


Internal sensor:

-Working pressure: 0-51 psi / 0-3.5 bar

-Pressure accuracy: plus or minus 0.1BAR

-Transmission frequency: 433.92MHz

-Working temperature: minus 20-plus 85 degrees Celsius

-Storage temperature: minus 40-plus 125 degrees Celsius

-Working voltage: 2.0-3.6V

-Waterproof rating: IP67

-Battery: Built-in CR24500 button battery

-Battery life: 2-5 years (not replaceable, the sensor needs to be replaced when the battery is dead)


External sensor:

-Working pressure: 0-51 psi / 0-3.5 bar

-Pressure accuracy: +/- 0.1BARi

-Working frequency: 433.92MHz

-Working voltage: 2.0-3.6V

-Waterproof: IP67

-Working temperature: minus 40 plus 85 degrees Celsius

-Storage temperature: minus 40-plus 125 degrees Celsius

-Battery: Built-in CR1632 120mAh button battery

-Battery life: 1-2 years (replaceable battery)


we have other TPMS models,If you are interested in them,please click link:MORE TPMS
